Dorman 598-704 Integrated Control Module

Overview of Dorman Integrated Control Module 598-704

The Dorman Integrated Control Module 598-704 is designed specifically for Jeep Wrangler models, providing reliable electrical control and system integration. This remanufactured power module features a durable plastic housing and multiple connectors to ensure seamless vehicle operation.

• Dimensions: 10 inches length, 5 inches width, 6.75 inches height
• Connector Color: Black with rectangular shape
• Seven connectors with a total of 208 male blade and pin terminals
• Remanufactured totally integrated power module
• No mounting hardware required for installation

Detailed Product Description

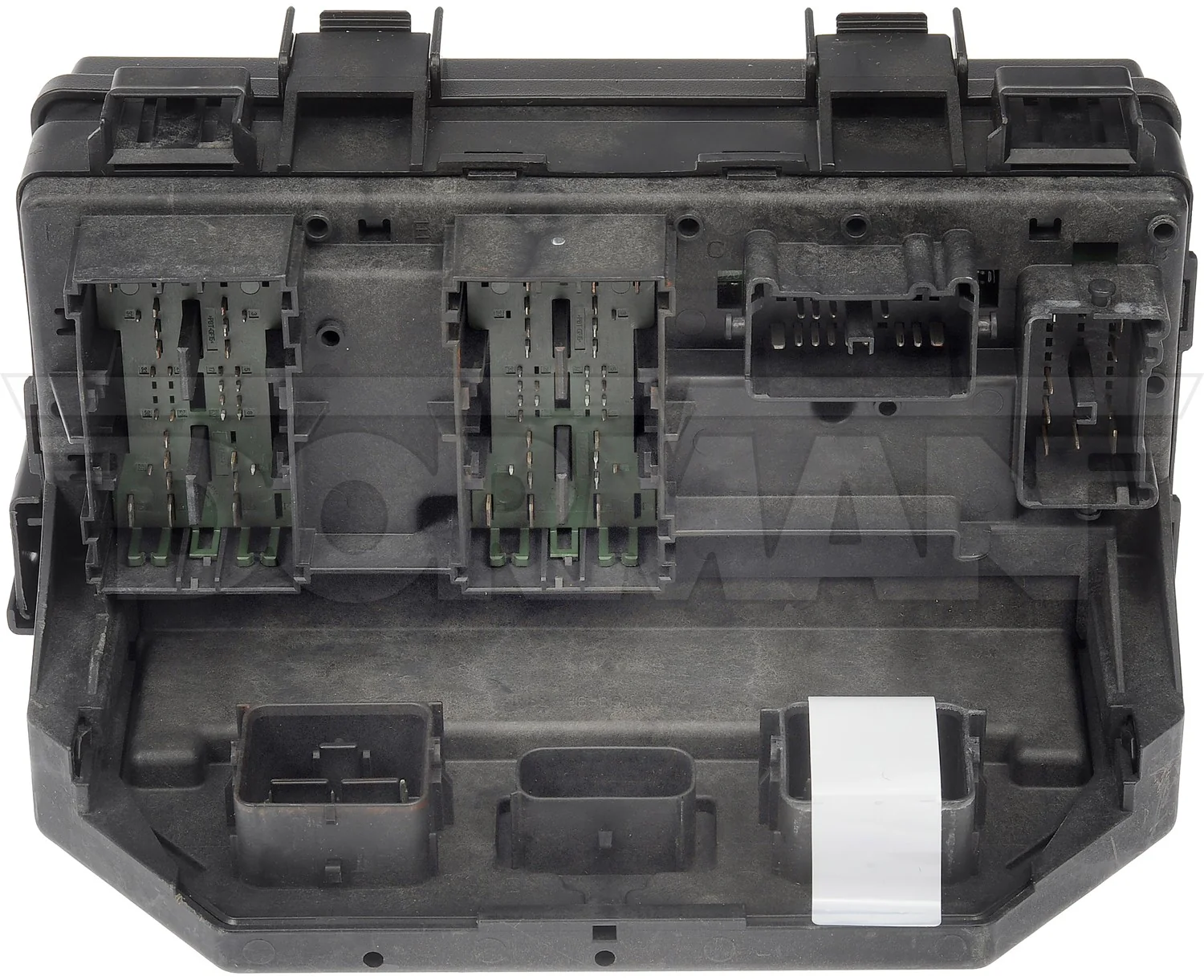

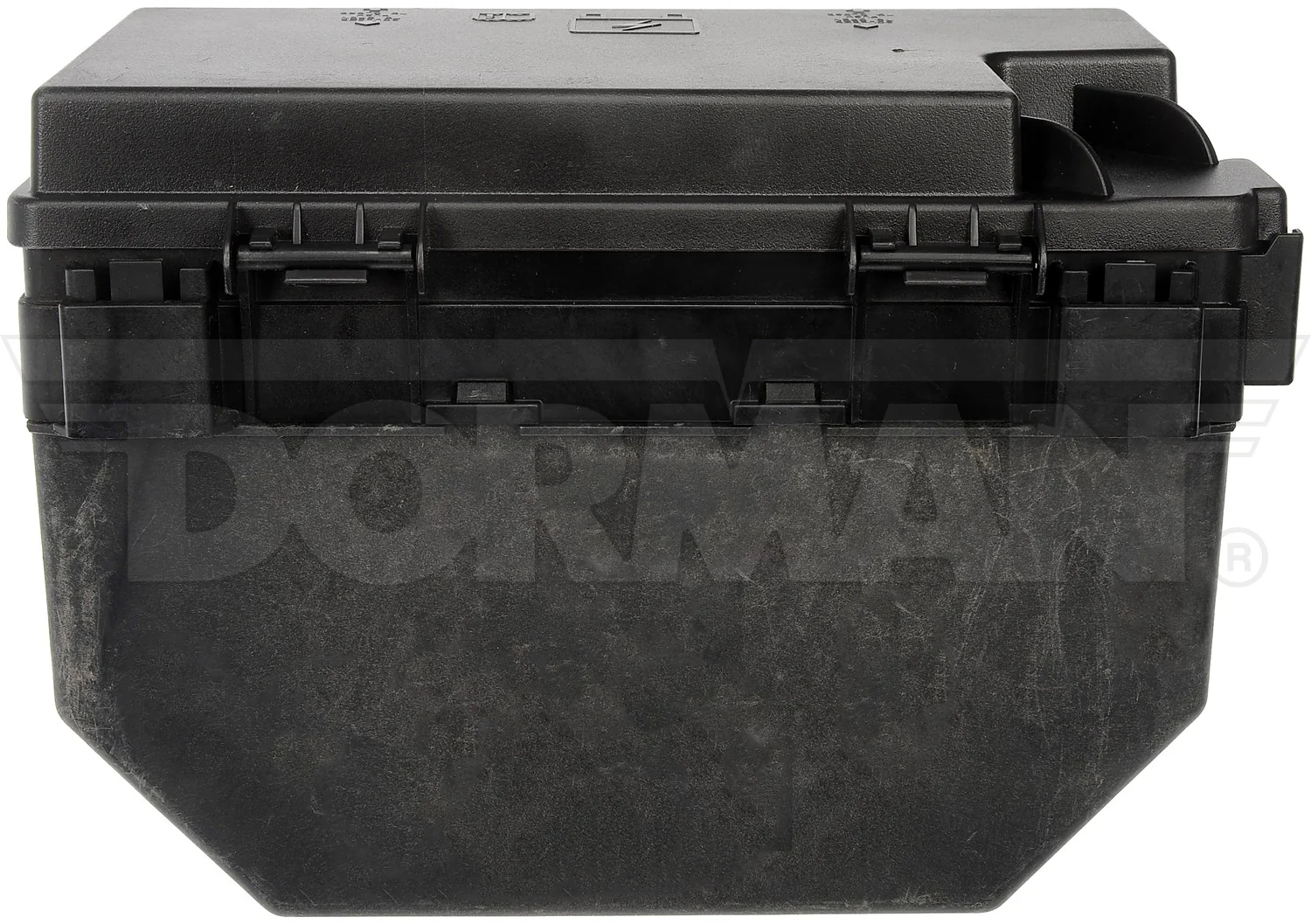

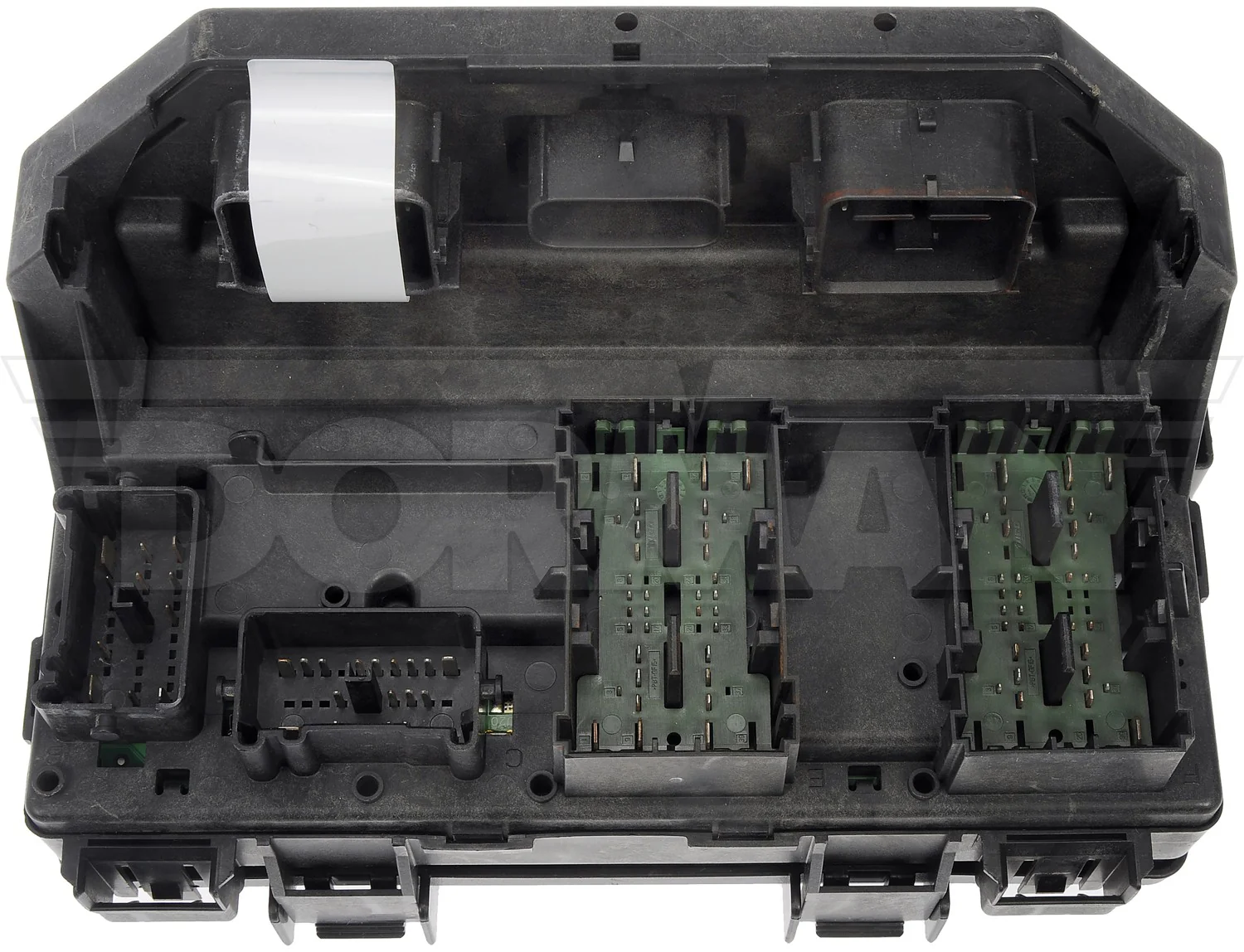

The Dorman 598-704 Integrated Control Module is engineered to meet the electrical demands of Jeep Wrangler vehicles. Its plastic housing provides protection against environmental factors while maintaining a lightweight design. The module includes seven black rectangular connectors, each equipped with male blade and pin terminals totaling 208 terminals, ensuring comprehensive connectivity for various vehicle systems. With no wires attached, this module is designed for direct integration into the vehicle's existing wiring harness. The compact dimensions allow for easy placement within the engine compartment or designated control module area.

Compatible Applications and Common Issues Addressed

• Compatible with Jeep Wrangler models requiring integrated control module replacement
• Resolves electrical control failures affecting power distribution
• Addresses issues related to faulty or damaged control modules causing system malfunctions
• Helps restore proper function to lighting, body control, and other integrated systems
• Eliminates intermittent electrical faults due to worn or corroded terminals

Installation Notes and Tips

Installation of the Dorman 598-704 Integrated Control Module requires no additional mounting hardware, simplifying the replacement process. Ensure all seven connectors are securely attached to their corresponding vehicle harness connectors. Verify terminal alignment and connector seating to prevent electrical faults. It is recommended to disconnect the vehicle battery before installation to avoid electrical shorts or damage.

Quality Assurance and Warranty Information

This remanufactured integrated control module undergoes rigorous testing to meet OEM standards for performance and reliability. Dorman provides quality assurance on this part, ensuring it functions as intended for Jeep Wrangler vehicles. Please refer to Dorman's warranty policy for specific coverage details.
