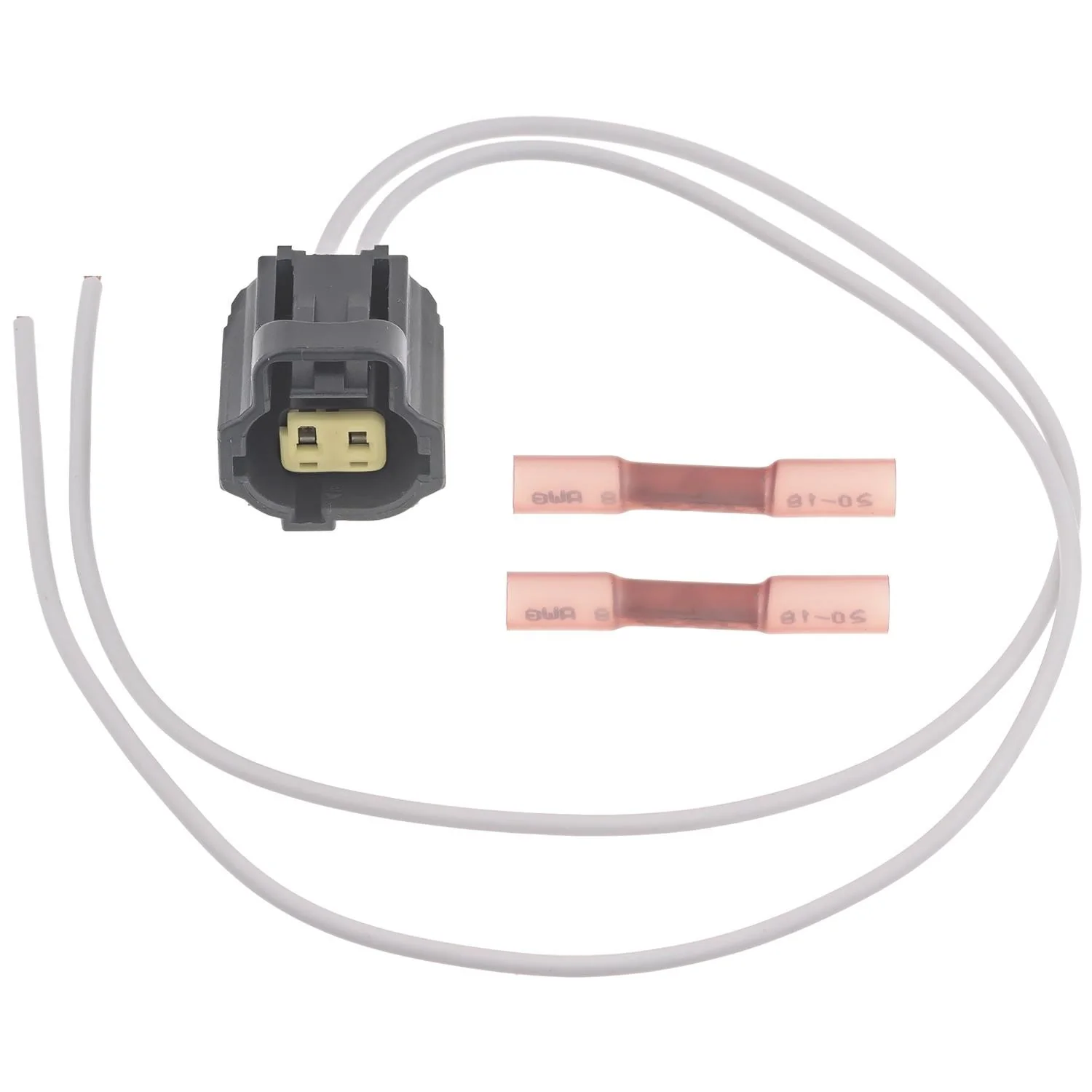

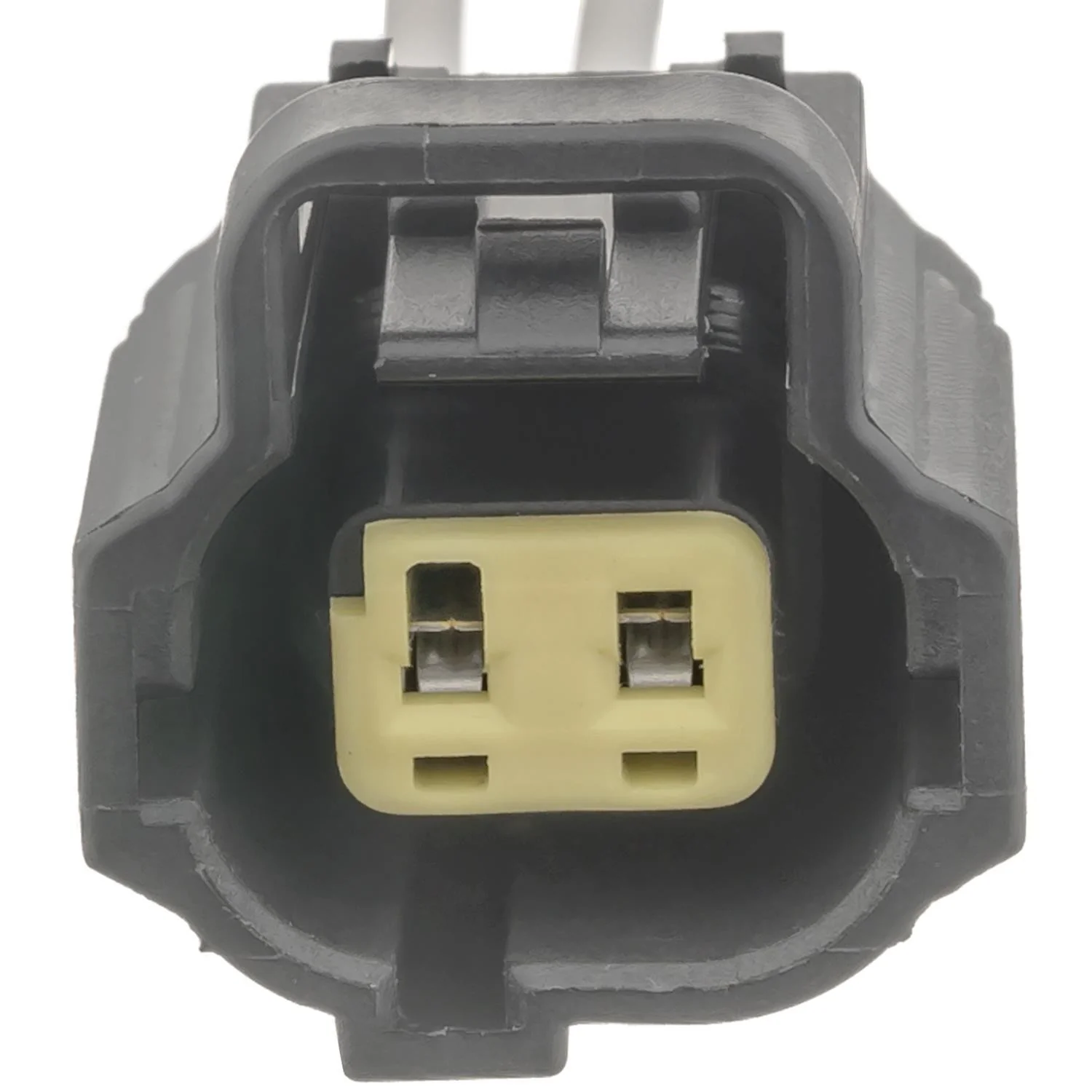

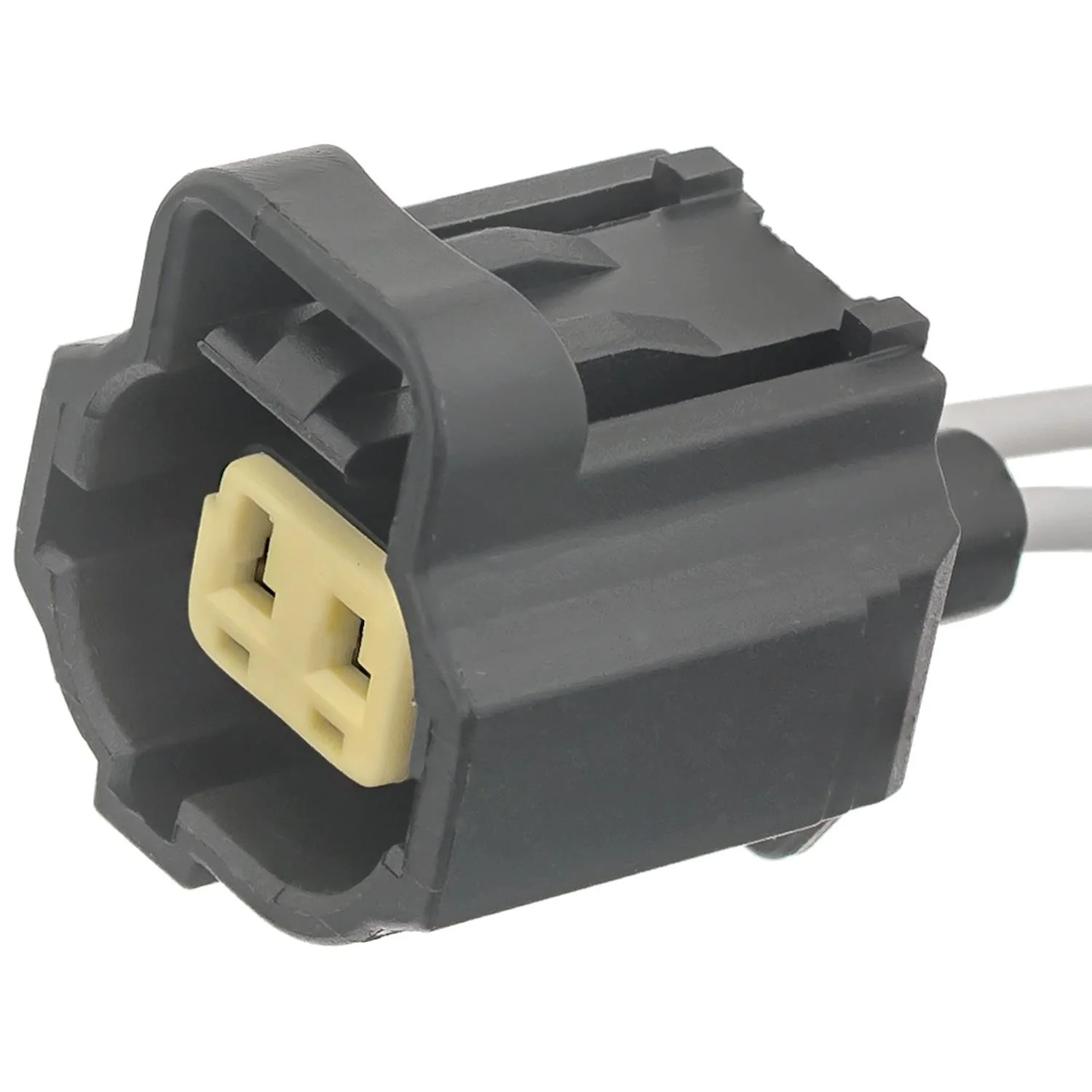

Standard Ignition S-1830 Fuel Temperature Sensor Connector

Overview of Standard Ignition Fuel Temperature Sensor Connector S-1830

The Standard Ignition Fuel Temperature Sensor Connector S-1830 is designed for reliable electrical connections in fuel temperature sensing applications. Engineered to meet the specifications of Ford and Mercury vehicles, this connector ensures consistent performance in models such as the Crown Victoria, F-150, and E-350 Econoline.

• Zero-degree bend angle for straightforward installation
• Female connector and terminal gender for secure connections
• Square connector shape with 18 gauge wire compatibility
• 12-inch (30 cm) harness length for flexible routing
• Two-pin socket terminal type with two wires for accurate signal transmission
• Housing length of 1.5 inches for compact fitment

Technical Details and Specifications

The S-1830 fuel temperature sensor connector features a 0-degree bend angle, allowing for a direct and uncomplicated connection without additional strain on wiring. The female connector and terminal design provide a secure and stable interface with the sensor, minimizing the risk of disconnection or signal loss. The square-shaped connector housing measures 1.5 inches in length, offering a compact profile suitable for tight engine compartments.

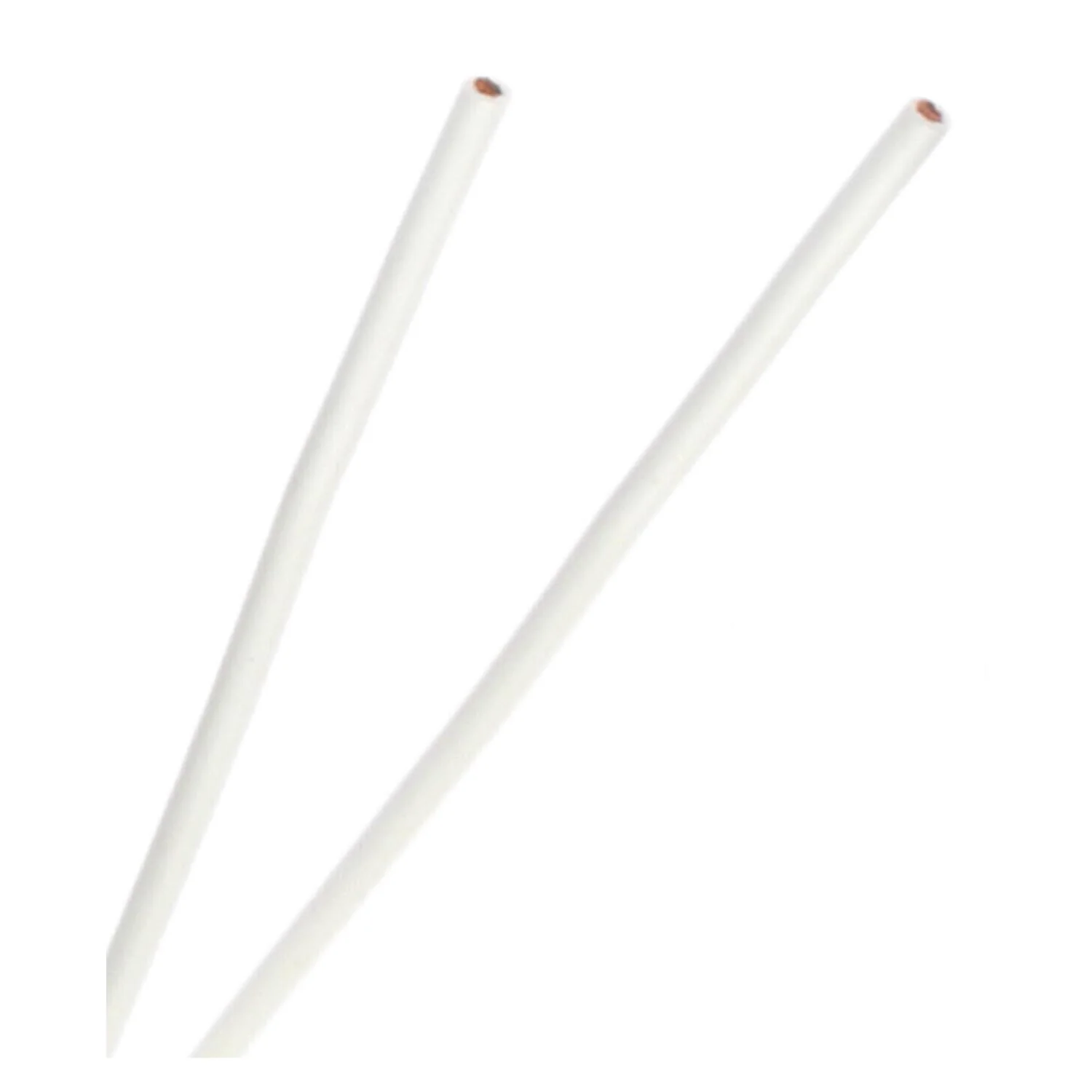

Wiring is configured with two 18-gauge wires, ensuring adequate current capacity and signal integrity. The harness length of 12 inches (30 cm) provides sufficient length for routing within the engine bay while maintaining a clean installation. The two-pin socket terminal type supports accurate and reliable fuel temperature sensor readings.

Compatible Vehicles and Applications

This fuel temperature sensor connector is compatible with a range of Ford and Mercury vehicles, including:

• Ford Crown Victoria
• Ford E-250 Econoline
• Ford E-350 Econoline and E-350 Econoline Club Wagon
• Ford E-350 Super Duty
• Ford F-150 and F-250
• Mercury Grand Marquis

It is specifically designed to interface with fuel temperature sensors in these models, ensuring proper electrical connectivity and sensor function.

Common Issues Addressed by This Connector

• Intermittent or faulty fuel temperature sensor readings due to poor connector contact
• Damaged or corroded sensor connectors causing inaccurate fuel temperature data
• Wiring harness wear or breakage affecting sensor signal transmission
• Connector housing damage leading to exposure and electrical shorts
• Replacement of worn or outdated connectors to maintain sensor system integrity

Installation Notes and Tips

When installing the Standard Ignition S-1830 connector, ensure the connector is fully seated to prevent loose connections. Verify that the wiring harness is routed away from high-heat sources and moving parts to avoid premature wear. Use dielectric grease on terminals if recommended by the vehicle manufacturer to protect against corrosion. Confirm compatibility with the vehicle’s fuel temperature sensor before installation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The S-1830 connector undergoes quality control testing to ensure proper fit and function. Warranty coverage details should be confirmed through the original product documentation or authorized Standard Ignition sources.
