The Story

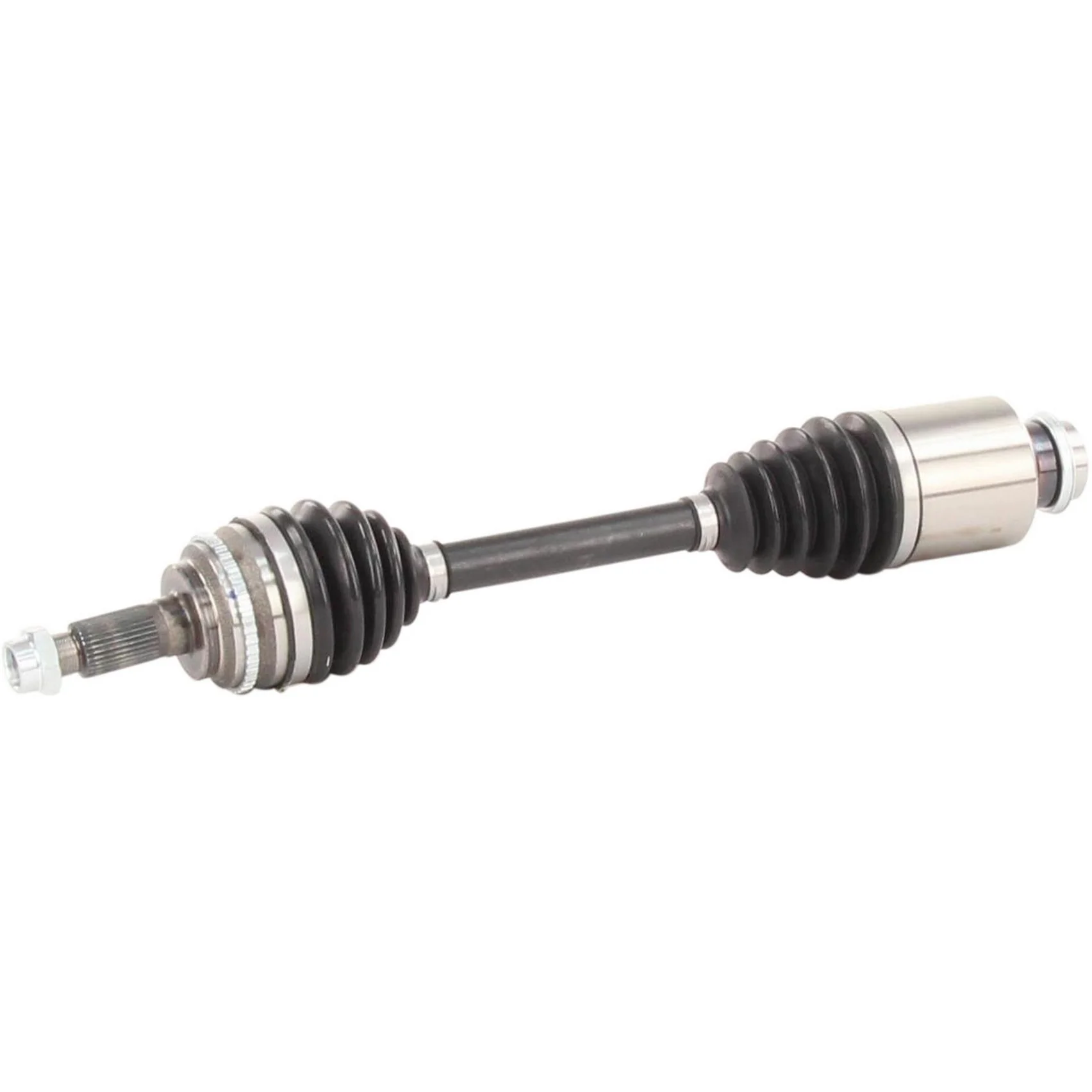

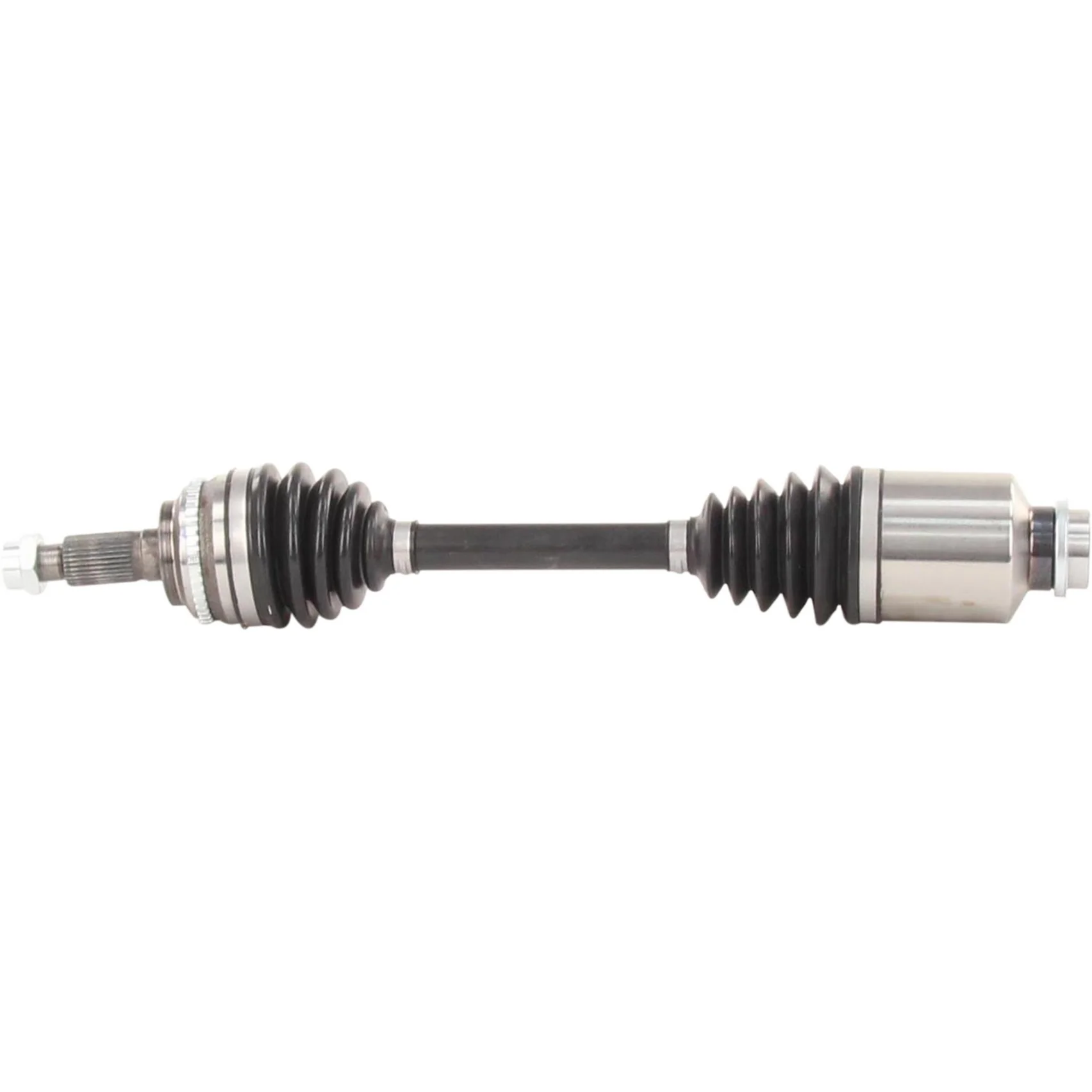

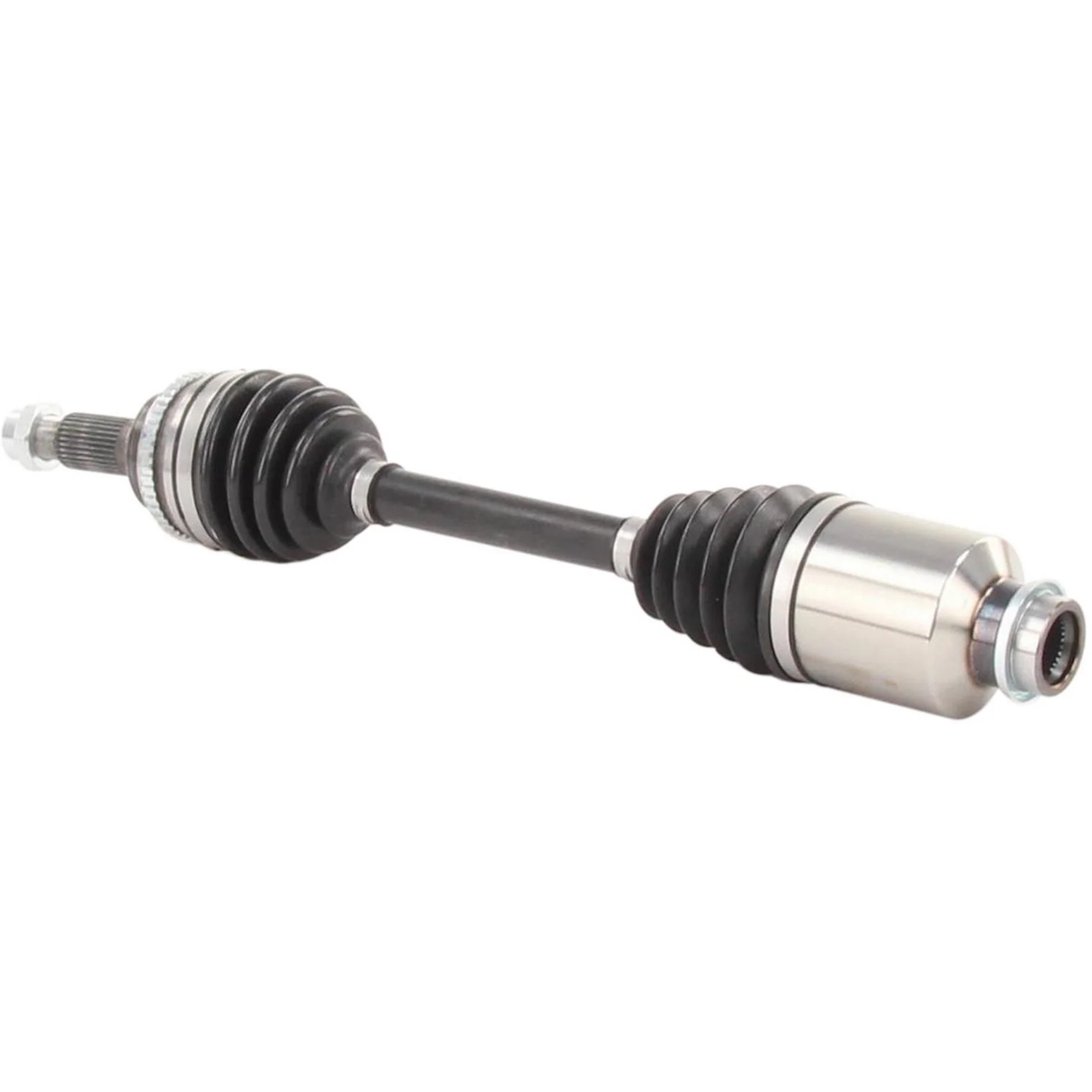

Overview of the TrakMotive FD-8147HDX CV Axle Shaft
The TrakMotive Extreme Climate CV Axle Shaft FD-8147HDX is engineered for reliable driveline performance in demanding conditions. Designed specifically for Ford Edge, Lincoln MKX, and Mazda CX-7 models, this CV axle shaft ensures consistent power transfer and durability.
- Compatible with Ford Edge, Lincoln MKX, and Mazda CX-7 vehicles
- Includes a self-locking hex axle nut (M24*1.5 thread size)
- Neoprene boot material for enhanced weather resistance
- 44-tooth ABS ring with a toothed tone ring included
- Overall compressed length of 23.8 inches (604.5 mm) and extended length of 26.25 inches (667.5 mm)
Features of the Extreme Climate CV Axle Shaft Line
The Extreme Climate CV Axle Shaft product line by TrakMotive is designed to withstand harsh environmental conditions. This line focuses on durability and protection against extreme temperatures and weather exposure, making it suitable for vehicles operating in diverse climates. The FD-8147HDX model benefits from this design philosophy, featuring a neoprene boot and robust construction to maintain performance and longevity.
Technical Specifications and Design Details
The FD-8147HDX CV axle shaft includes a 44-tooth ABS ring with a toothed tone ring, which is essential for accurate wheel speed sensor readings. The axle nut is a hex type with a 36 mm (1.42 inch) hex size and a height of 21.5 mm (0.85 inch), featuring a self-locking mechanism to ensure secure fitment. Both inboard and outboard joints use spline connection styles, with 31-2t inboard splines and 31 outboard splines, providing a precise and reliable connection to the drivetrain. The neoprene boot material offers resistance to cracking and wear, protecting the joint from contaminants and extending service life.
Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Ford Edge, Lincoln MKX, and Mazda CX-7
- Addresses issues with ABS sensor errors due to faulty tone rings
- Solves driveline vibrations caused by joint wear or boot failure
- Prevents grease leakage and contamination with durable neoprene boots
- Restores proper axle nut torque retention with self-locking hex nut design
Installation Notes and Tips
When installing the FD-8147HDX CV axle shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the ABS tone ring is properly aligned to avoid sensor errors. Inspect the neoprene boot for any damage during installation to guarantee a sealed joint. This CV axle shaft is designed for direct replacement on compatible Ford Edge, Lincoln MKX, and Mazda CX-7 models, facilitating a straightforward installation process.
Quality Assurance and Warranty
The TrakMotive FD-8147HDX CV axle shaft is a new, not remanufactured, component built to meet OEM standards. It undergoes rigorous quality control to ensure durability and performance under extreme climate conditions. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
